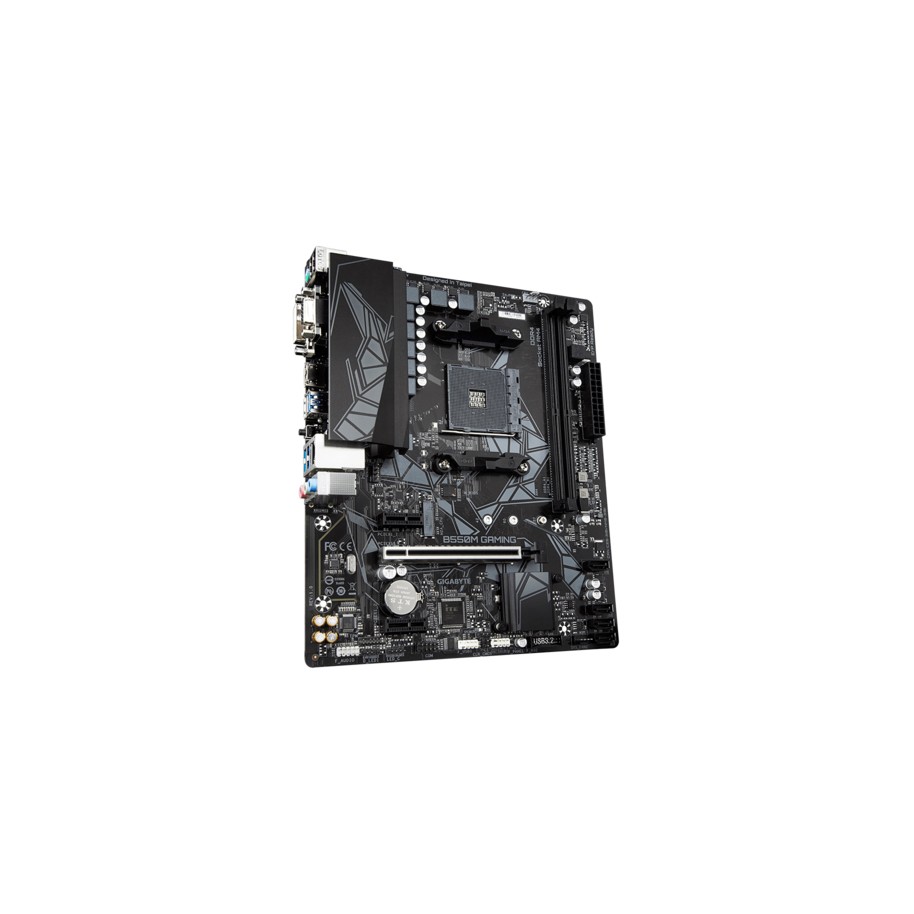

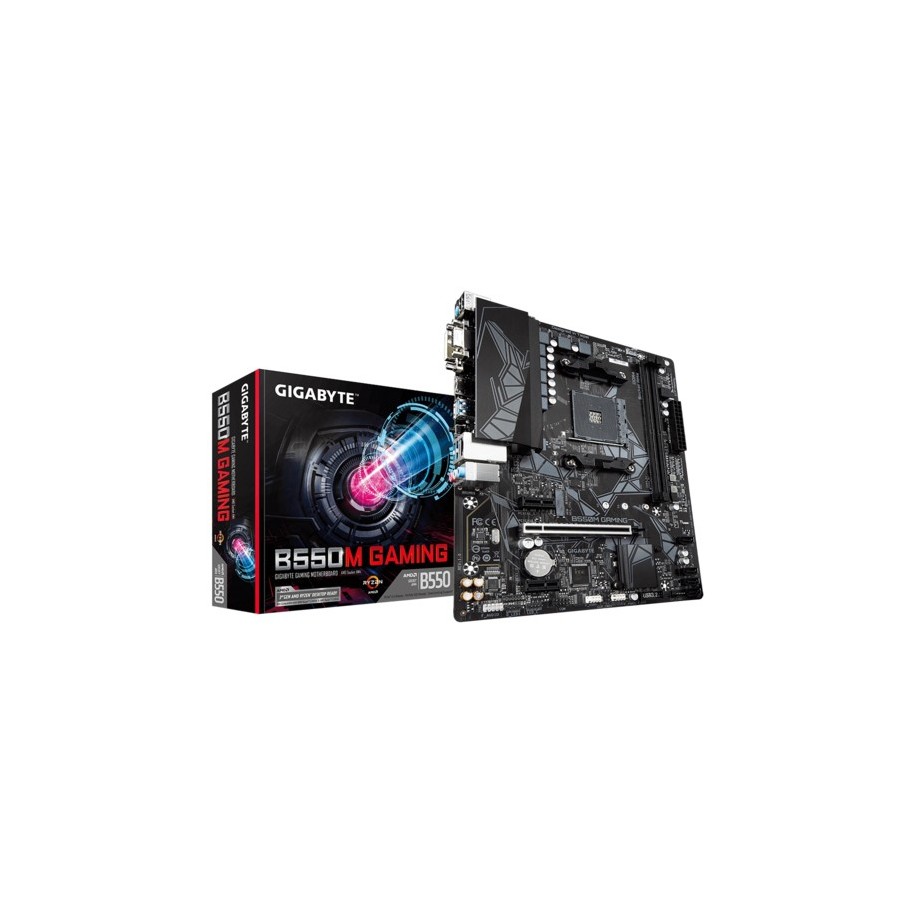

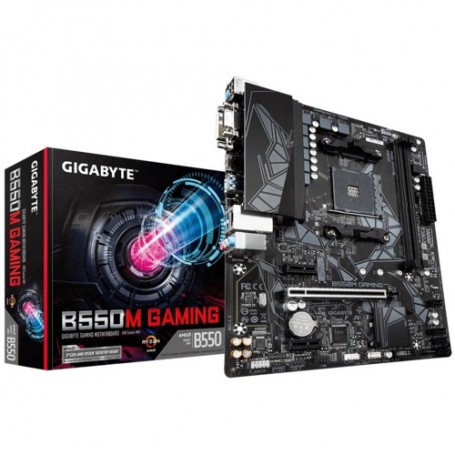

Mother B550 Gigabyte Gaming X Am4 M.2 U3.2 Crossfire Dvi Hdmi 5 Pci Express Mineria Ryzen Ddr4 Ver más grande
Mother B550 Gigabyte Gaming X Am4 M.2 U3.2 Crossfire Dvi Hdmi 5 Pci Express Mineria Ryzen Ddr4
  • Mother B550 Gigabyte Gaming X Am4 M.2 U3.2 Crossfire Dvi Hdmi 5 Pci Express Mineria Ryzen Ddr4
  • Mother B550 Gigabyte Gaming X Am4 M.2 U3.2 Crossfire Dvi Hdmi 5 Pci Express Mineria Ryzen Ddr4

Mother B550 Gigabyte Gaming X Am4 M.2 U3.2 Crossfire Dvi Hdmi 5 Pci Express Mineria Ryzen Ddr4

12124

Nuevo

2 artículos

Advertencia: ¡Últimos artículos en inventario!

$ 29,863

Más información

Placa base para juegos AMD B550 con solución VRM digital, LAN para juegos GIGABYTE con administración de ancho de banda, PCIe 4.0 / 3.0 x4 M.2, RGB FUSION 2.0, Smart Fan 5, Q-Flash Plus, Diseño de resistencias anti-azufre

Admite procesadores AMD Ryzen ™ de tercera generación
DDR4 sin búfer ECC / no ECC de doble canal, 4 DIMM
Solución VRM digital pura de 10 + 3 fases con MOSFET de bajo RDS (activado)
Ranura Ultra Durable ™ PCIe 4.0 Ready x16
Ranuras ultrarrápidas NVMe PCIe 4.0 / 3.0 M.2
LAN para juegos 8118 exclusiva de GIGABYTE con gestión de ancho de banda
Puertos HDMI, DVI-D para múltiples pantallas
Cuenta con condensadores de audio de alta calidad
RGB FUSION 2.0 admite tiras de LED direccionables y LED RGB
Smart Fan 5 cuenta con múltiples sensores de temperatura, cabezales de ventilador híbridos con FAN STOP
Q-Flash Plus actualiza el BIOS sin instalar la CPU, la memoria y la tarjeta gráfica
Diseño de resistencias anti-azufre


Procesador
AMD Socket AM4, support for: 3rd Generation AMD Ryzen™ processors/ 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors
(Please refer "CPU Support List" for more information.)
Chipset
AMD B550
Memoria
4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
3rd Gen AMD Ryzen™ Processors:
Support for DDR4 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules
New Generation AMD Ryzen™ with Radeon™ Graphics processors:
Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules
Dual channel memory architecture
Support for DDR4 3200/2933/2667/2400/2133 MHz memory modules
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)
Gráficos Integrados
Integrated in the 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors:
1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
* The DVI-D port does not support D-Sub connection by adapter.
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version, HDCP 2.3, and HDR.
Maximum shared memory of 16 GB
Audio
Realtek® ALC887 codec
High Definition Audio
2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.
LAN
Realtek® GbE LAN chip (1000 Mbit/100 Mbit)
Puertos de Expansión
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
3rd Generation AMD Ryzen™ processors support PCIe 4.0 x16 mode
3rd Generation AMD Ryzen™ with Radeon™ Graphics processors support PCIe 3.0 x16 mode
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
1 x PCI Express x16 slot (PCIEX2), integrated in the Chipset:
Supporting PCIe 3.0 x2 mode
3 x PCI Express x1 slots (PCIEX1_1, PCIEX1_2, PCIEX1_3), integrated in the Chipset:
Supporting PCIe 3.0 x1 mode
Interfaz de Almacenamiento
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:
3rd Generation AMD Ryzen™ processors support SATA and PCIe 4.0 x4/x2 SSDs
3rd Generation AMD Ryzen™ with Radeon™ Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs
1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:
Supporting SATA and PCIe 3.0 x4/x2 SSDs
4 x SATA 6Gb/s connectors, integrated in the Chipset:
Support for RAID 0, RAID 1, and RAID 10
USB
Chipset:
1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
3 x USB 3.2 Gen 1 ports on the back panel
Chipset:
2 x USB 3.2 Gen 1 ports available through the internal USB header
6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Conectores Internos de E/S
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x water cooling CPU fan header
3 x system fan headers
2 x addressable LED strip headers
2 x RGB LED strip headers
1 x CPU cooler LED strip/RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
1 x Clear CMOS jumper
Conectores del Panel Trasero
2 x USB 2.0/1.1 ports
1 x PS/2 keyboard/mouse port
1 x DVI-D port
1 x HDMI port
3 x USB 3.2 Gen 1 ports
1 x USB 3.2 Gen 2 Type-A port (red)
1 x Q-Flash Plus button
1 x RJ-45 port
3 x audio jacks
Controlador de E/S
iTE® I/O Controller Chip
Monitorización H/W
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Overheating warning
Fan fail warning
Fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Características Únicas
Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
@BIOS
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
System Information Viewer
Support for Q-Flash Plus
Support for Q-Flash
Support for Xpress Install
Software Incluido
Norton® Internet Security (OEM version)
Realtek® 8118 Gaming LAN Bandwidth Control Utility
Sistema Operativo
Support for Windows 10 64-bit
Diseño
ATX Form Factor; 30.5cm x 24.4cm
